ZIMSEC O-Level Physics Paper 4 November 2004 Question Paper

About this question paper

This is the ZIMSEC O-Level Physics question paper for Paper 4 from November 2004. Use it for exam practice under timed conditions. The paper code is 9188/4. Time allowed: 60 minutes.

Other years: Physics O-Level

• 2005 Paper 4 June Question Paper3.2 MB
• 2006 Paper 4 November Question Paper725 KB
• 2014 Paper 2 November Question Paper5.5 MB
• 2015 Paper 2 November Question Paper4.3 MB
• 2016 Paper 2 November Question Paper6.5 MB
• 2017 Paper 2 November Question Paper3.6 MB
• 2017 Paper 1 May/June Question Paper12 MB
• 2018 Paper 3 November Question Paper3.8 MB

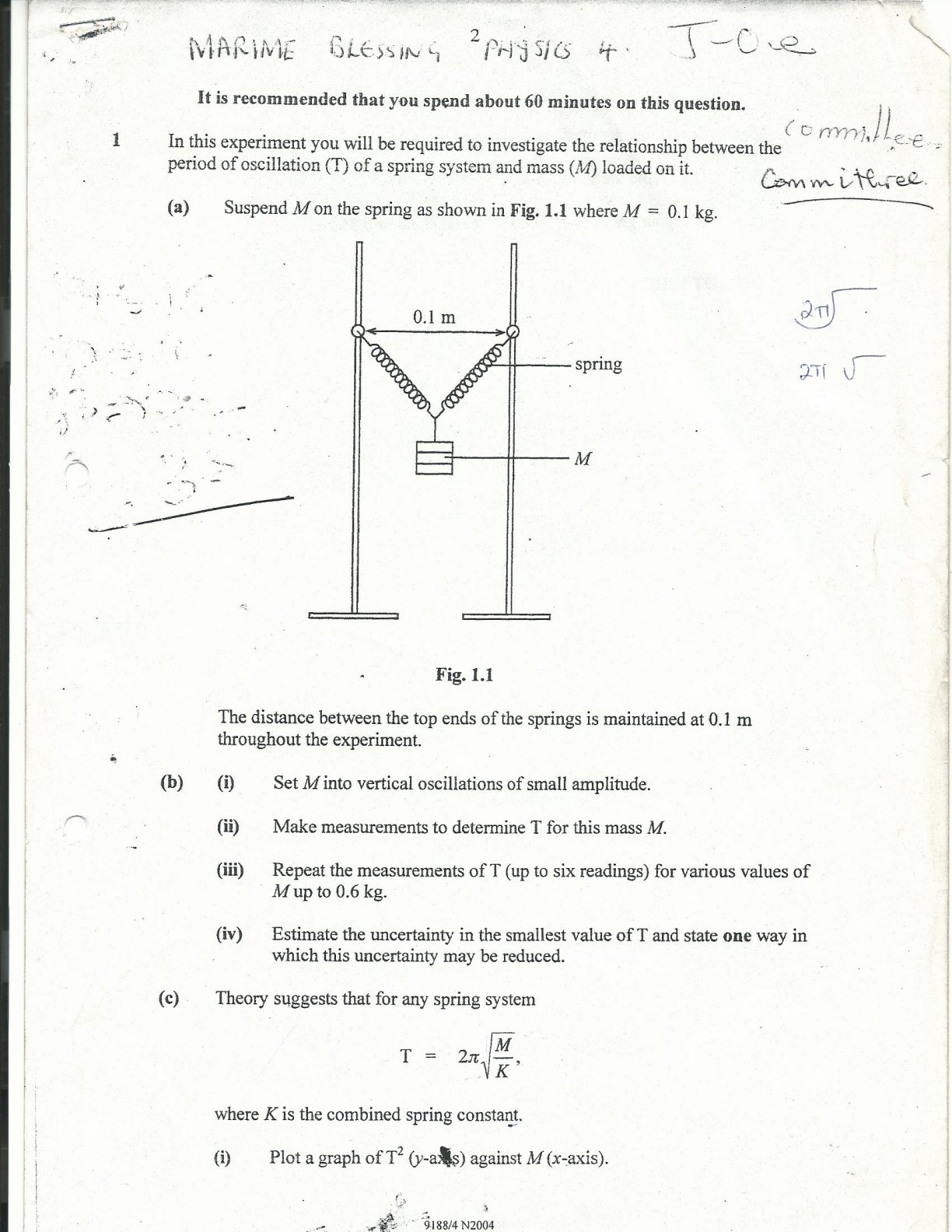

Text from the first page

Touponsping

MARIME BLESSING ${ }^{2}$ PHYSICS 4.

J-0.e

It is recommended that you spend about 60 minutes on this question.
1 In this experiment you will be required to investigate the relationship between the

commillee. period of oscillation (T) of a spring system and mass ( $M$ ) loaded on it.

Committree.
(a) Suspend $M$ on the spring as shown in Fig. 1.1 where $M=0.1 \mathrm{~kg}$.

Fig. 1.1

The distance between the top ends of the springs is maintained at 0.1 m throughout the experiment.
(b) (i) Set $M$ into vertical oscillations of small amplitude.
(ii) Make measurements to determine T for this mass $M$.
(iii) Repeat the measurements of T (up to six readings) for various values of $M$ up to 0.6 kg .
(iv) Estimate the uncertainty in the smallest value of T and state one way in which this uncertainty may be reduced.
(c) Theory suggests that for any spring system
\[
\mathrm{T}=2 \pi \sqrt{\frac{M}{K}},
\]
where $K$ is the combined spring constant.
(i) Plot a graph of $\mathrm{T}^{2}(y$-ans s ) against $M(x$-axis).

$9188 / 4$ N2004
