ZIMSEC O-Level Mathematics Paper 1 November 2023 Question Paper

About this question paper

This is the ZIMSEC O-Level Mathematics question paper for Paper 1 from November 2023. Use it for exam practice under timed conditions, then check your work against the marking scheme. The paper code is 4004/1. Time allowed: 2 hours 30 minutes. See the marking scheme.

More Mathematics O-Level 2023 papers

• Paper 2 November Question Paper2.4 MB
• Paper 1 June Question Paper3.0 MB
• Paper 2 June Question Paper2.8 MB
• Paper 2 November Marking Scheme3.0 MB
• Paper 1 November Question Paper464 KB
• Paper 1 November Marking Scheme1.8 MB
• Paper 2 November Study Guide5.1 MB
• Paper 1 November Marking Scheme2.1 MB

Other years: Mathematics O-Level

• 2024 Paper 2 November Question Paper2.4 MB
• 2024 Paper 1 November Question Paper2.9 MB
• 2024 Paper 2 June Question Paper1.9 MB
• 2024 Paper 1 June Question Paper6.4 MB
• 2022 Paper 1 November Question Paper1.5 MB
• 2022 Paper 2 November Question Paper2.5 MB
• 2024 Paper 1 June Question Paper5.0 MB
• 2024 Paper 1 June Question Paper3.2 MB

Extracted text

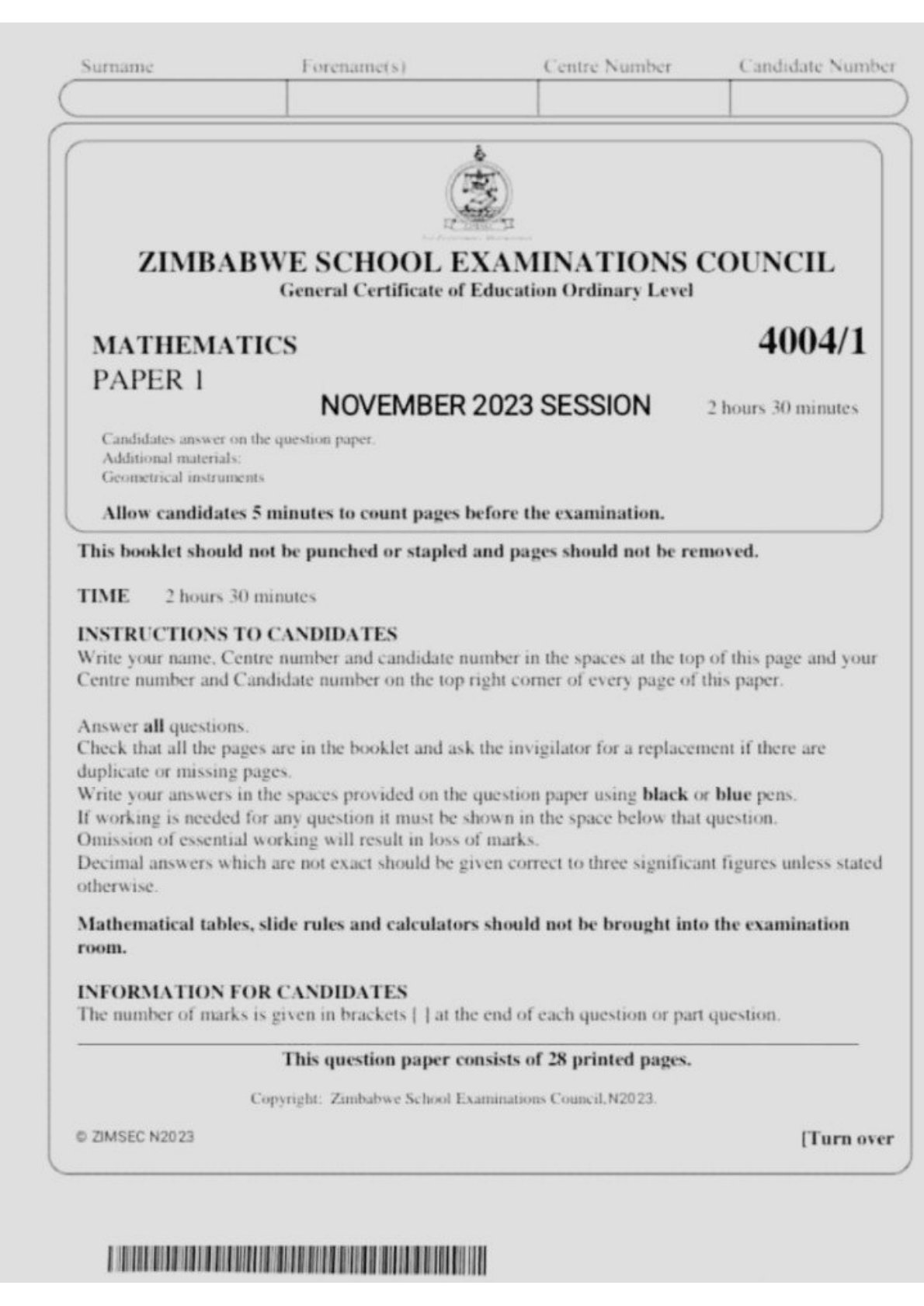

# ZIMBABWE SCHOOL EXAMINATIONS COUNCIL

**General Certificate of Education Ordinary Level**

**MATHEMATICS**
**PAPER 1**

4004/1
NOVEMBER 2023 SESSION
2 hours 30 minutes
Candidates answer on the question paper.
Additional materials:
Geometrical instruments
Allow candidates 5 minutes to count pages before the examination.
This booklet should not be punched or stapled and pages should not be removed.

TIME 2 hours 30 minutes

### INSTRUCTIONS TO CANDIDATES

Write your name, Centre number and candidate number in the spaces at the top of this page and your Centre number and Candidate number on the top right corner of every page of this paper.

Answer all questions.
Check that all the pages are in the booklet and ask the invigilator for a replacement if there are duplicate or missing pages.
Write your answers in the spaces provided on the question paper using black or blue pens.
If working is needed for any question it must be shown in the space below that question.
Omission of essential working will result in loss of marks.
Decimal answers which are not exact should be given correct to three significant figures unless stated otherwise.

Mathematical tables, slide rules and calculators should not be brought into the examination room.

### INFORMATION FOR CANDIDATES

The number of marks is given in brackets | | at the end of each question or part question.
This question paper consists of 28 printed pages.
Copyright: Zimbabwe School Examinations Council. N2023.

## Question 7
![](https://ocr.unopasa.com/p/ocr_assets/534701273447581d611aa996ab7e1c716cf40cd4f7cc2b3865df1487ec5a9465.jpg)

\(A B C D\) is a parallelogram.
\(X\) is the point on \(B C\) such that \(B X: X C=2: 1\).
\(\overrightarrow{A B}=2 \mathbf{p}\) and \(\overrightarrow{A D}=3 \mathbf{q}\)

Find, in terms of \(\mathbf{p}\) and \(\mathbf{q}\).

### (a)

\(\overrightarrow{A C}\).

Answer \(\overrightarrow{A C}=\)

### (b)

\(\overrightarrow{A X}\).

Answer \(\overrightarrow{A X}=\)

### (c)

\(\overrightarrow{X D}\).

Answer \(\overrightarrow{X D}=\)

## Question 8
A group of 80 students took a physics test.
This table shows the distribution of their marks.

| Mark \((m)\) | \(0<m \leqslant 10\) | \(10<m \leqslant 20\) | \(20<m \leqslant 30\) | \(30<m \leqslant 40\) | \(40<m \leqslant 50\) | \(50<m \leqslant 60\) |
| :--- | :---: | :---: | :---: | :---: | :---: | :---: |
| Frequency | 4 | 12 | 14 | 22 | 18 | 10 |

### (a)

Complete the cumulative frequency table.

| Mark \((m)\) | \(m \leqslant 10\) | \(m \leqslant 20\) | \(m \leqslant 30\) | \(m \leqslant 40\) | \(m \leqslant 50\) | \(m \leqslant 60\) |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| Cumulative <br> frequency |  |  |  |  |  |  |

### (b)

Draw a cumulative frequency curve for this information.

![](https://ocr.unopasa.com/p/ocr_assets/5ca96f4fdbcb31b7362286f36b773922b3f1e27e7a0d46284e7231a3da3cea22.jpg)

### (c)

The pass mark for the test is 45.

Use your cumulative frequency curve to estimate the number of students who passed.

## Question 9
| 0.2 | 2 | \(\sqrt{2}\) | \(\frac{1}{3}\) | 0.83 | 8 | 81 |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |

From the numbers listed above, write down

### (a)

a square number,

### (b)

a cube number,

### (c)

an irrational number

Answer \(\_\_\_\_\)

## Question 10
\(A=\left(\begin{array}{rr}4  |  -2  -1  |  1\end{array}\right) \quad B=\left(\begin{array}{ll}-3  |  2  -1  |  4\end{array}\right)\)

### (a)

Find \(2 A-B\)

Answer ( )[2]

### (b)

Find \(A^{-1}\).

Answer ( )[2]

## Question 11
Write these numbers in order, starting with the smallest.

\[
\begin{array}{lllll}
\frac{3}{4}  |  0  |  -1  |  -\frac{17}{20}  |  -\frac{4}{5}
\end{array}
\]

Answer \(\_\_\_\_\)

## Question 12
The diagram shows the regions \(A\) to \(I\).

![](https://ocr.unopasa.com/p/ocr_assets/5ef4302b22a7aa754a8f51dd000b9ebfcb0802e254625eac41ebc07d86086fd6.jpg)

Give the letter of the region defined by each set of inequalities.

### (a)

\(x>0, y>0, y<1\) and \(y<4-2x\)

\(\_\_\_\_\)

### (b)

\(y>1, y<x-2\) and \(y<5-x\)

\(\_\_\_\_\)

## Question 13
The two triangles below are similar. The lengths are in centimetres.

Calculate \(a\) and \(b\).

\[
\begin{aligned}
\text{Answer } a  |  =
b  |  =
\end{aligned}
\]

## Question 14
\(f(x)=\frac{7-3x}{2x}\)

### (a)

Find \(f(4)\).

\(\_\_\_\_\)

Answer

### (b)

Find \(f^{-1}(x)\).

Answer \(f^{-1}(x)=\) \(\_\_\_\_\)

## Question 15
The table shows part of Ms Dube's payslip for a particular month.

| Earnings | $ | Deductions | $ |
| :--- | :--- | :--- | :--- |
| transport allowance | 100.00 | pension contribution | 6.00 |
| housing allowance | 129.00 | union subscription | 10.00 |
|  |  | medical aid | 8.00 |
|  |  | Insurance | 17.50 |
| basic salary | 275.00 | total deductions | - |
| net salary | - |  |  |

### (a)

Calculate the

#### (i)

total deductions.

#### (ii)

net salary.

### (b)

Express the pension contribution as a percentage of her basic salary.

Answer (a)

(i) $ \(\_\_\_\_\) ..... [1]

(ii) $ \(\_\_\_\_\)[1]

(b) \(\_\_\_\_\)[2]

## Question 16
The times of buses from Aytown to Deetown are shown.

| Aytown | 0704 | 0804 | 0856 | 0900 | 0932 | 1056 |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| Beetown | - | - | 0905 | - | 0941 | 1105 |
| Ceetown | 0718 | 0818 | 0914 | - | - | 1114 |
| Deetown | 0735 | 0835 | 0931 | 0928 | 1005 | 1131 |

### (a)

Maryam lives in Ceetown and has to be in Deetown by 0930.

What time is the latest bus from Ceetown that she can catch?

Answer

### (b)

Aadil catches the 0932 from Aytown to Deetown.

How long does his journey take?

Answer minutes [1]

## Question 17
The first four terms \(u_{1}, u_{2}, u_{3}\) and \(u_{4}\), in a sequence of numbers are given by

\[
\begin{aligned}  |  u_{1}=1 \times 2+3^{2}=11   |  u_{2}=2 \times 3+4^{2}=22   |  u_{3}=3 \times 4+5^{2}=37   |  u_{4}=4 \times 5+6^{2}=56 .
\end{aligned}
\]

### (a)

Evaluate \(u_{5}\).

Answer \(\_\_\_\_\)

### (b)

The \(n\)th term of the sequence is \(u_{n}\). …
