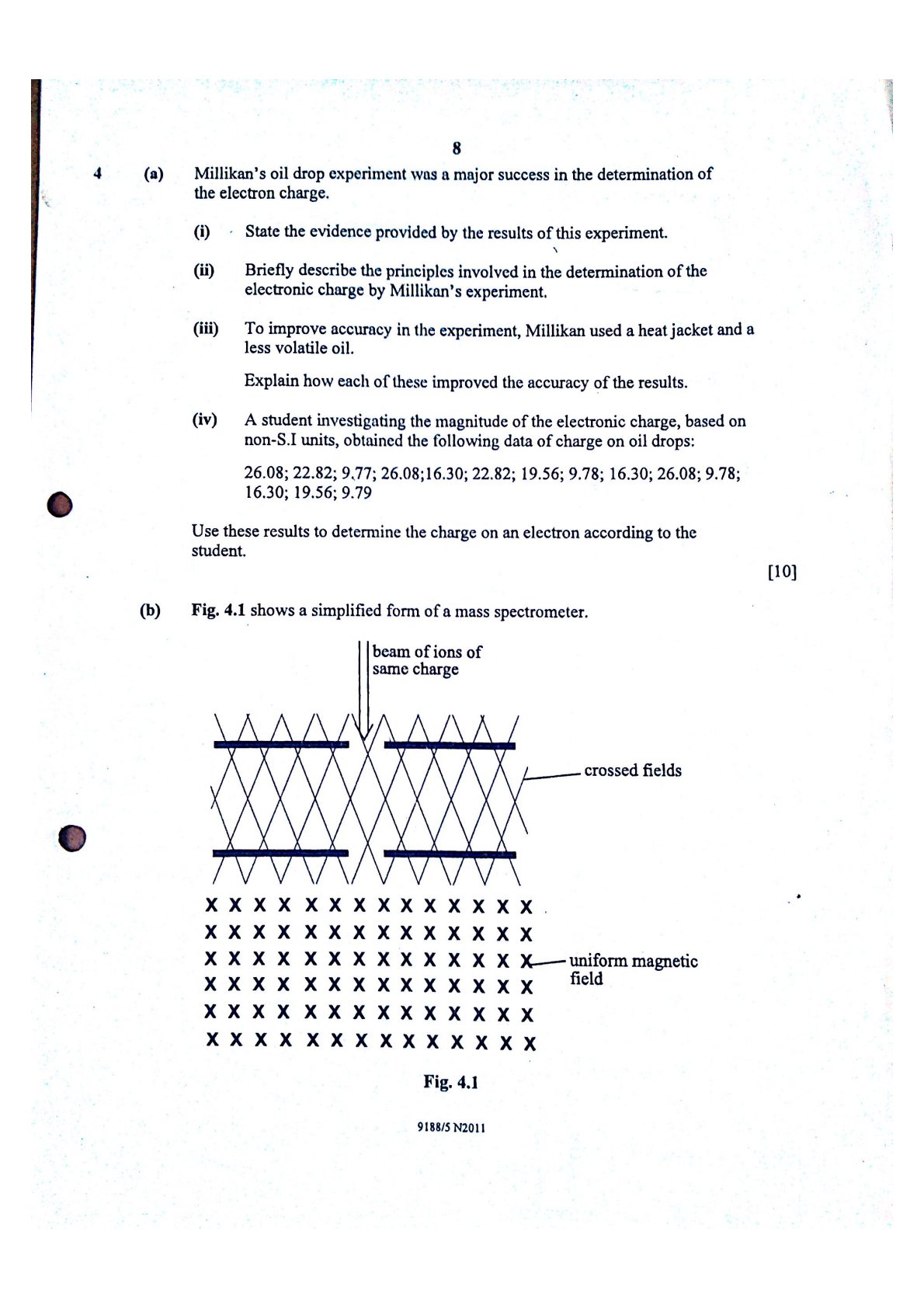

Text from the first page

8

4 (a) Millikan's oil drop experiment was a major success in the determination of the electron charge.
(i) State the evidence provided by the results of this experiment.
(ii) Briefly describe the principles involved in the determination of the electronic charge by Millikan's experiment.
(iii) To improve accuracy in the experiment, Millikan used a heat jacket and a less volatile oil.

Explain how each of these improved the accuracy of the results.
(iv) A student investigating the magnitude of the electronic charge, based on non-S.I units, obtained the following data of charge on oil drops:
\[
\begin{array}{l}
26.08 ; 22.82 ; 9.77 ; 26.08 ; 16.30 ; 22.82 ; 19.56 ; 9.78 ; 16.30 ; 26.08 ; 9.78 ;
16.30 ; 19.56 ; 9.79
\end{array}
\]

Use these results to determine the charge on an electron according to the student.

[10]
(b) Fig. 4.1 shows a simplified form of a mass spectrometer.

Fig. 4.1

9188/5 N2011
