This is the ZIMSEC O-Level Physics revision pack for P2 & P3. It is a free revision pack for revision.

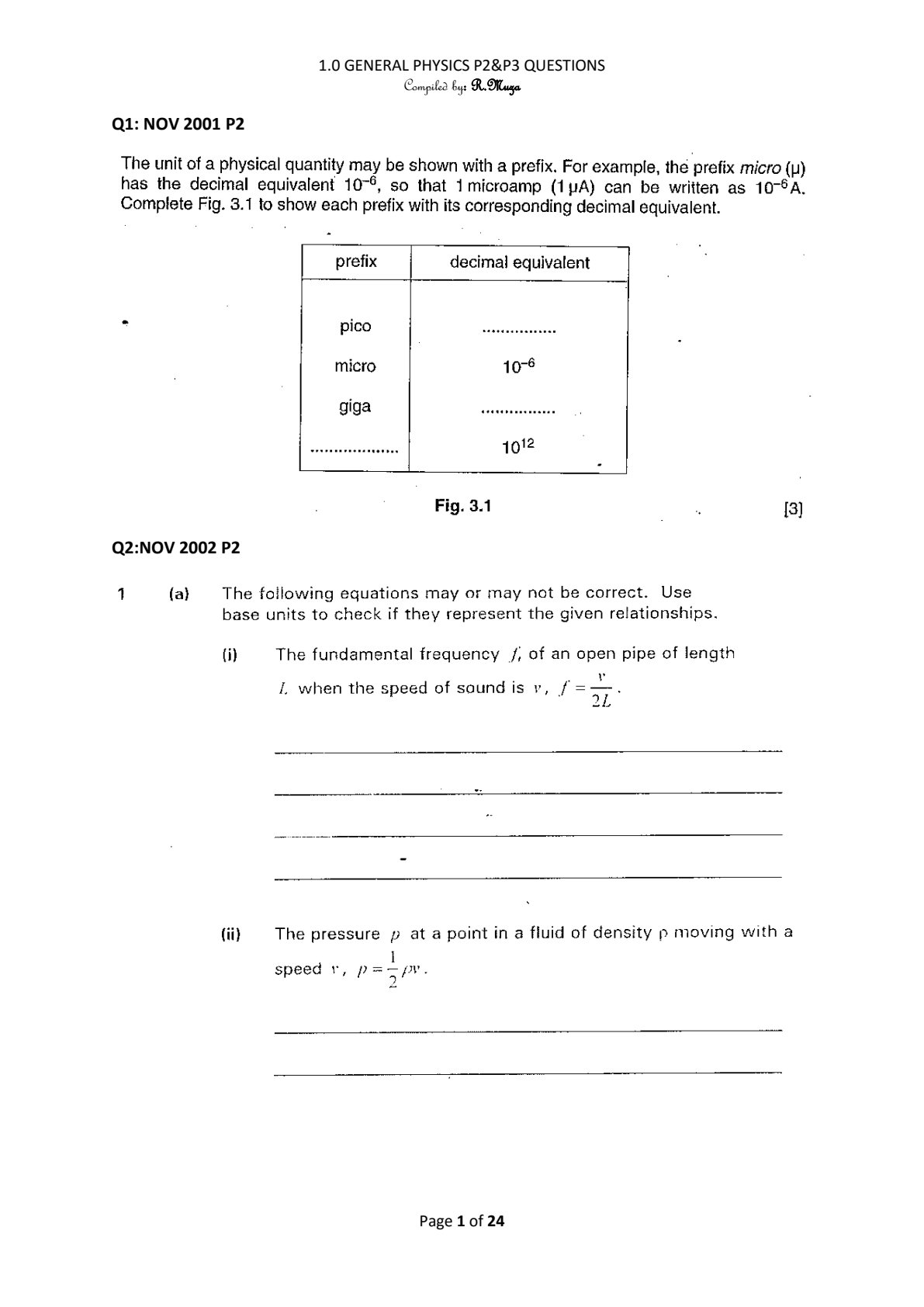

1.0 GENERAL PHYSICS P2\&P3 QUESTIONS
Compiled by: R.T.Tuga
Q1: NOV 2001 P2
The unit of a physical quantity may be shown with a prefix. For example, the prefix micro $(\mu)$ has the decimal equivalent $10^{-6}$, so that 1 microamp $(1 \mu \mathrm{~A})$ can be written as $10^{-6} \mathrm{~A}$. Complete Fig. 3.1 to show each prefix with its corresponding decimal equivalent.
\begin{table}
prefix | decimal equivalent
pico | $\ldots \ldots \ldots \ldots \ldots$.
micro | $10^{-6}$
giga | $\ldots \ldots \ldots \ldots \ldots$
$\ldots \ldots \ldots \ldots \ldots .$. | $10^{12}$
\captionsetup{labelformat=empty}
\caption{Fig. 3.1}
\end{table}
[3]
Q2:NOV 2002 P2
1 (a) The following equations may or may not be correct. Use base units to check if they represent the given relationships.
(i) The fundamental frequency $f$, of an open pipe of length
L. when the speed of sound is $v, f=\frac{v}{2 L}$.
$\_\_\_\_$
$\_\_\_\_$
$\_\_\_\_$
$\_\_\_\_$
(ii) The pressure $p$ at a point in a fluid of density $p$ moving with a speed $\nu$, $p=\frac{1}{2} p \nu$.
$\_\_\_\_$
$\_\_\_\_$
Page 1 of 24
