Text from the first page

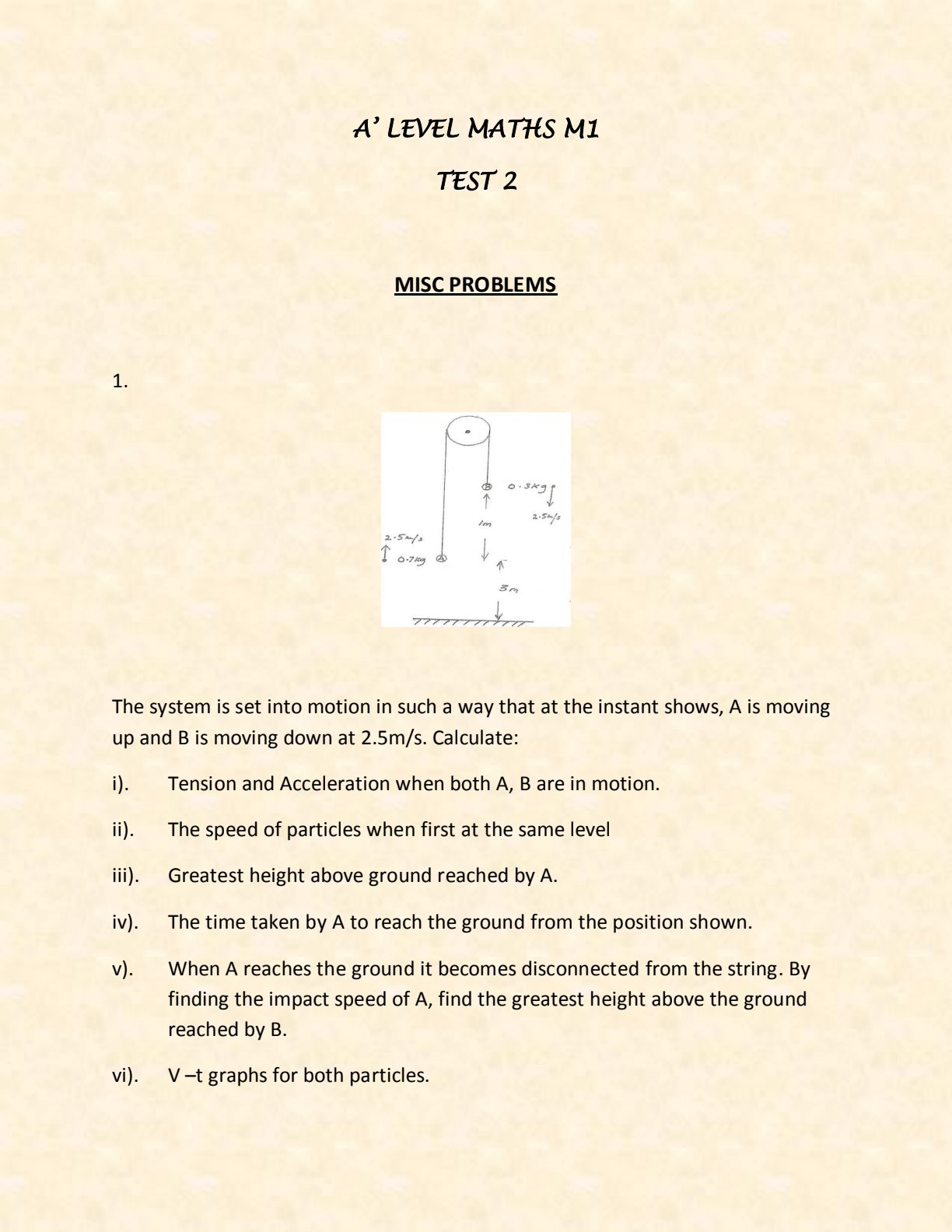

A' LEVEL MATHS M1
TEST 2

MISC PROBLEMS
1.

The system is set into motion in such a way that at the instant shows, A is moving up and $B$ is moving down at $2.5 \mathrm{~m} / \mathrm{s}$. Calculate:
i). Tension and Acceleration when both $\mathrm{A}, \mathrm{B}$ are in motion.
ii). The speed of particles when first at the same level
iii). Greatest height above ground reached by A .
iv). The time taken by A to reach the ground from the position shown.
v). When A reaches the ground it becomes disconnected from the string. By finding the impact speed of $A$, find the greatest height above the ground reached by $B$.
vi). $\quad \mathrm{V}-\mathrm{t}$ graphs for both particles.
